RTPF Coils
Tube Diameters are Getting Smaller

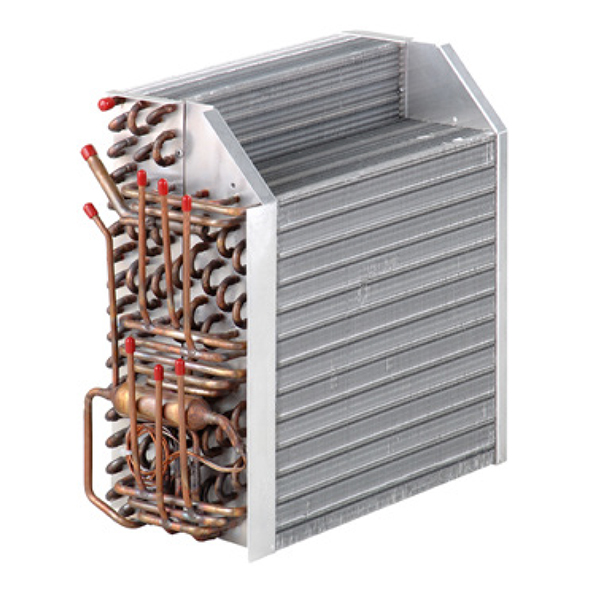

Heatcraft® coils are copper-aluminum heat exchangers that are used to transfer heat between air and fluid (refrigerant, water-glycol, or oil) in a wide range of applications. Tailored to specific system design requirements, these coils set the standard for cost-effective heat-transfer.
Refrigerant and refrigerant tubes go “hand in glove.” There is no better fit than copper for most refrigerants. Its high thermal conductivity, superior strength, and excellent corrosion resistance set it apart from any other material. Stainless steel and aluminum tubes exist, but the vast majority of heat exchanger coils and refrigerant distribution lines are made from copper.
Our copper-aluminum heat exchangers are used to transfer heat between air and fluid (refrigerant, water-glycol, or oil) in a wide range of applications. Tailored to specific system design requirements, these coils set the standard for cost-effective heat-transfer.
Design capabilities to meet application needs:
- Nine (9) different patterns
- 5/16, 3/8 and ½ inch, and 7mm tube diameters
- Four (4) fin thicknesses and five (5) fin designs to fine tune performance for specific needs
- Wide range of row depths and sizes
- Wide range of configuration and auxiliary upgrades:
- Feeder parts
- Connections
- Brackets
- Coatings for added corrosion resistance (E-coat, gray-dip, and black aesthetic paint)
